AceCube Fuel Trailers with Optional DEF

ACECUBE - VERSATILE

The AceCube Versatile Range features galvanised stacking corners and has primary and secondary galvanised hatch lids. First created in 2007 the elegant three tier component system is comprised of a main outer lid, a primary inner tank and an outer protection tank. The AceCube Versatile also features a spacious and easily accessible equipment chamber. This allows for the secure storage of pumps, filters, hose reels and dispensing nozzles, all of which are supplied by DyMac Global.

The bespoke design is available in seven sizes (450 to 4500 Litres) and is suitable for a wide variety of applications and industries. All tanks in the AceCube Versatile Range have been approved by leading test laboratories worldwide and come with UL 142, ULC S601-14. All tanks in the AceCube Versatile Range also come with UN31A/Y, IBC, and ADR certification. The AceCube Versatile’s innovative and cutting edge design makes it the only option for key decision makers across the fuel distribution, equipment rentals, mining, oil and gas, and military organisations worldwide.

acv-4500-thumb

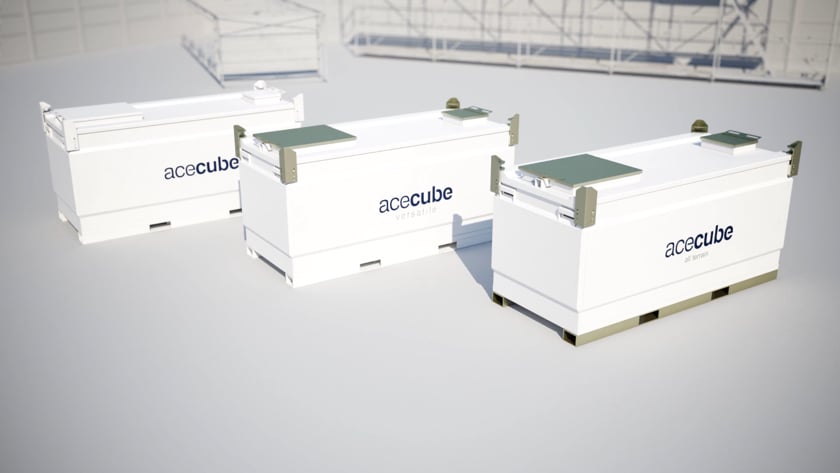

AceCube Size Options

AceCube Versatile ACV-450L
ACV-450L-full

AceCube Versatile ACV-450L

The AceCube Versatile ACV-450L is designed for the safe and secure transporting and storage of various industrial lubricants and hazardous liquids worldwide.

Specifications

Capacity450 Litres
Length1466 mm
Width1066 mm
Height853 mm
Outer Tank Thickness3 mm
Inner Tank Thickness4 mm
Weight, Tare393 kg
Weight, Laden814 kg
Safe Fuel Fill Level428 Litres

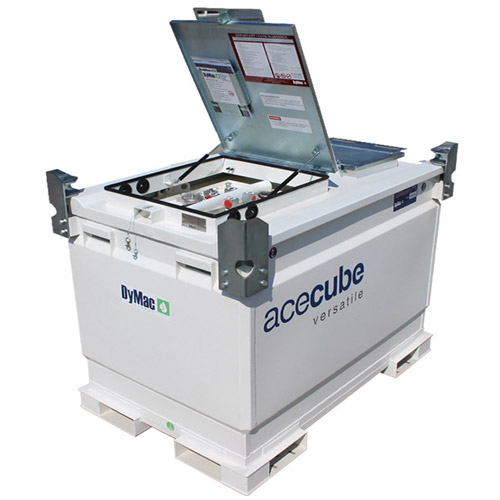

AceCube Versatile ACV-950L
acv-950-full-2

AceCube Versatile ACV-950L

The AceCube Versatile ACV-950L is designed for the safe and secure transporting and storage of various industrial lubricants and hazardous liquids worldwide.

Specifications

Capacity950 Litres
Length1643 mm
Width1099 mm
Height1296 mm
Outer Tank Thickness3 mm
Inner Tank Thickness4 mm
Weight, Tare606 kg
Weight, Laden1518 kg
Safe Fuel Fill Level903 Litres

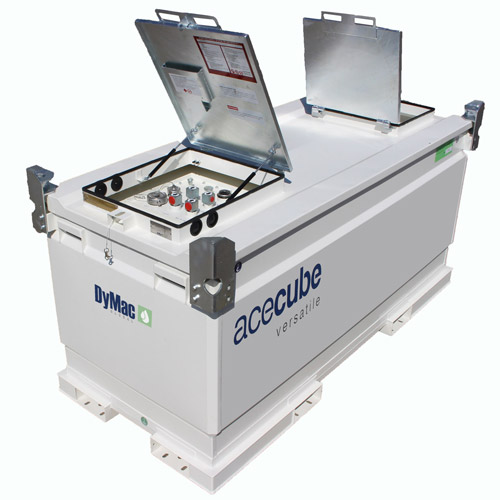

AceCube Versatile ACV-2000L
acv-2000-full-2

AceCube Versatile ACV-2000L

The AceCube Versatile ACV-2000L is designed for the safe and secure transporting and storage of various industrial lubricants and hazardous liquids worldwide.

Specifications

Capacity2000 Litres
Length2613 mm
Width1179 mm
Height1296 mm
Outer Tank Thickness3 mm
Inner Tank Thickness4 mm
Weight, Tare916 kg
Weight, Laden2796 kg
Safe Fuel Fill Level1900 Litres

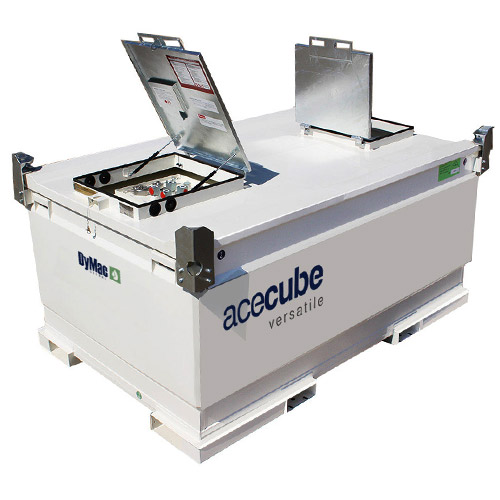

AceCube Versatile ACV-3000L
acv-3000-full-2

AceCube Versatile ACV-3000L

The AceCube Versatile ACV-3000L is designed for the safe and secure transporting and storage of various industrial lubricants and hazardous liquids worldwide.

Specifications

Capacity3000 Litres
Length2613 mm
Width1685 mm
Height1296 mm
Outer Tank Thickness3 mm
Inner Tank Thickness4 mm
Weight, Tare1125 kg
Weight, Laden3955 kg
Safe Fuel Fill Level2850 Litres

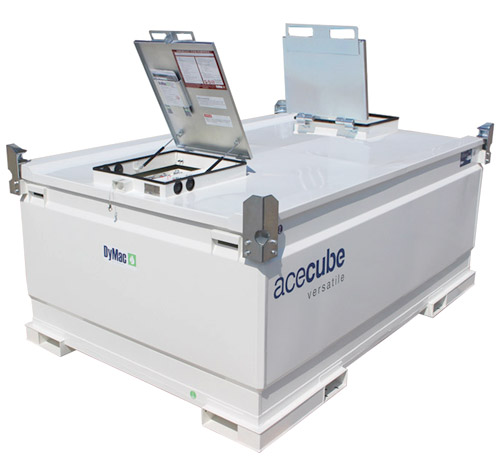

AceCube Versatile ACV-4500L
AceCube – Versatile

AceCube Versatile ACV-4500L

The AceCube Versatile ACV-4500L is designed for the safe and secure storage of various industrial lubricants and hazardous liquids worldwide.

Specifications

Capacity4500 Litres
Length3111 mm
Width2108 mm
Height1296 mm
Outer Tank Thickness3 mm
Inner Tank Thickness4 mm
Weight, Tare1500 kg
Weight, Laden5910 kg
Safe Fuel Fill Level4275 Litres
