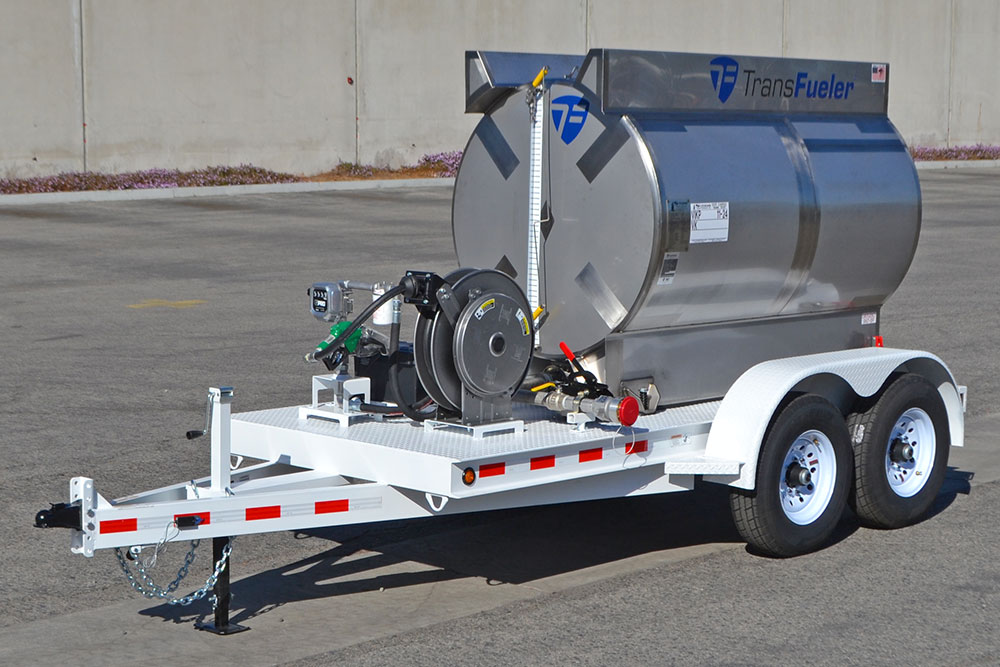

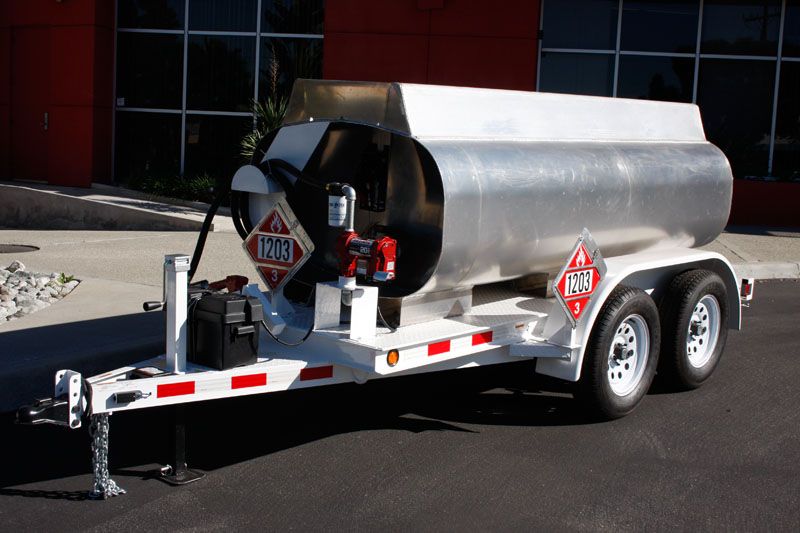

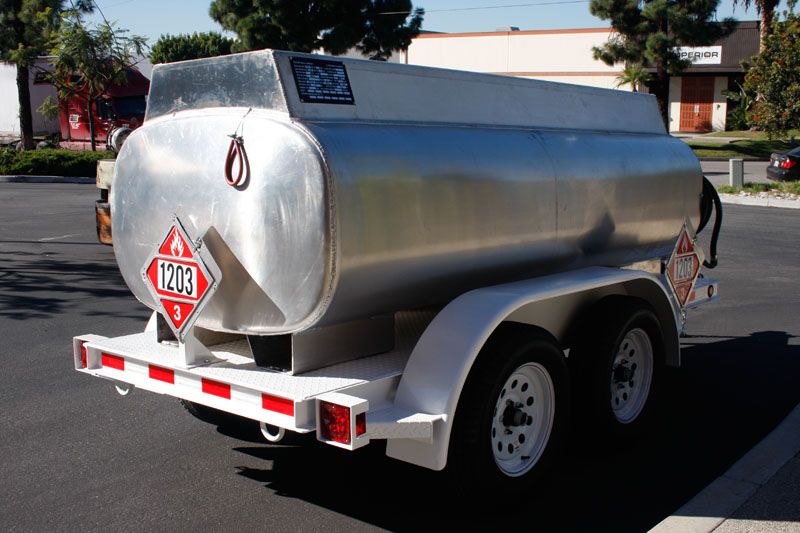

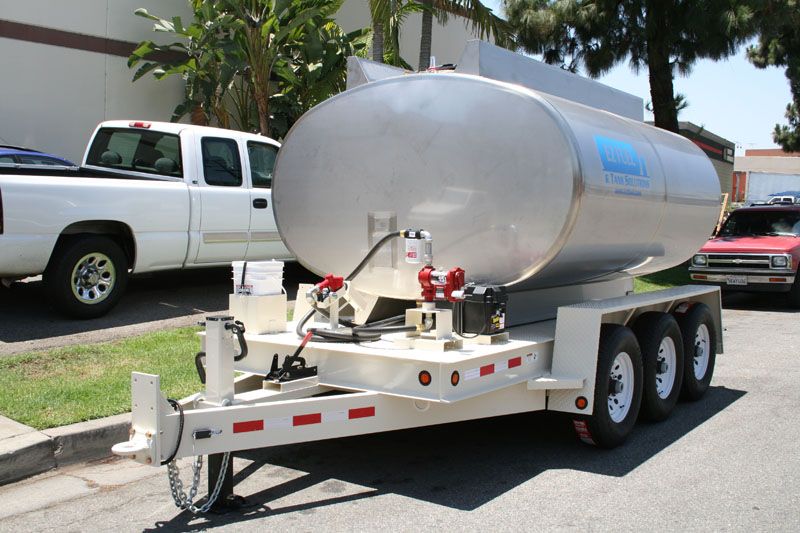

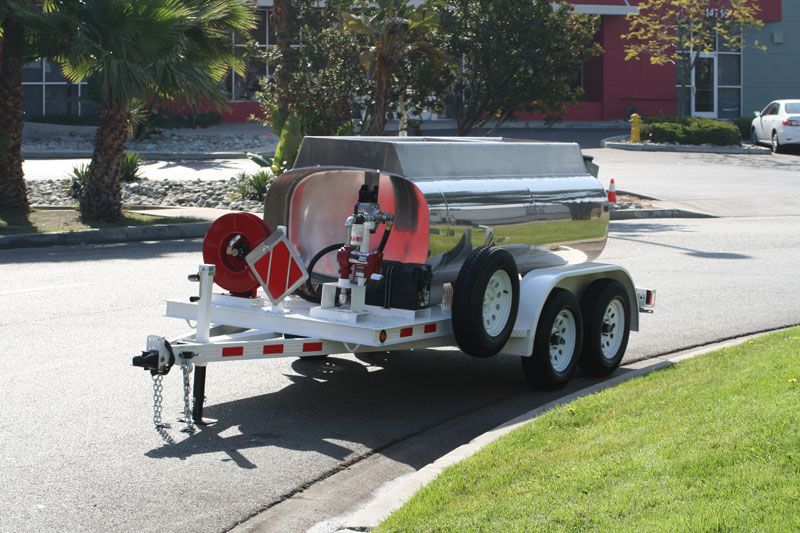

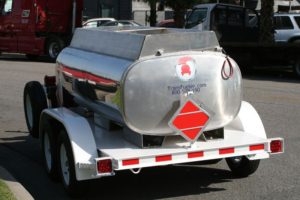

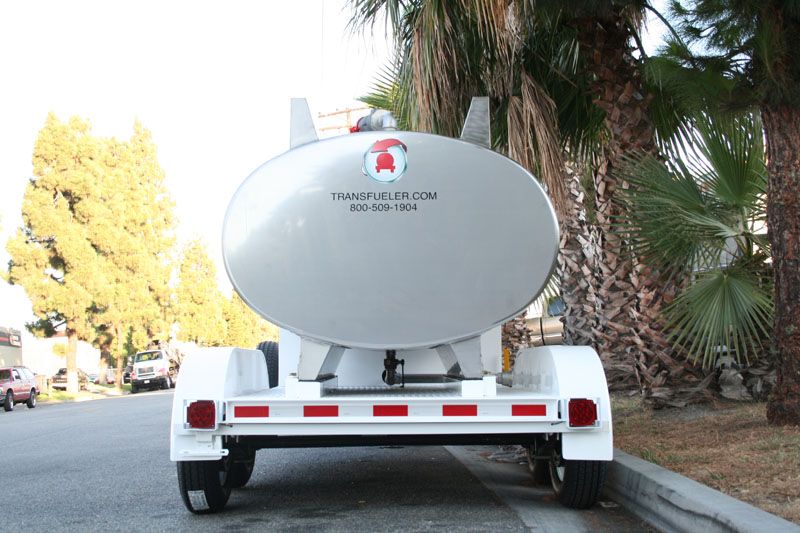

TransFueler Gas Quality Fuel Trailer & Tank

The Smart (And Legal) Choice For Transporting & Dispensing Gas.

All the features and heavy duty construction of our standard TransFuelers, PLUS!

Certified DOT 406 tanks comply with Federal law to transport gasoline. Don't be fooled by competitors claiming DOT approval. If it doesn't have a DOT 406 data plate, it's NOT a DOT 406 tank.

DOT 406 Tank
Standard Features
Standard Dispensing Equipment
Trailer Features
Standard Features
  • Capacity (In Gallons); 250 - 500 - 750 - 1,000 - 1,500-2,000
  • Superior Engineering. Designed to tow safely full, or empty
  • DOT 406 Certified
  • Baffled Tank
  • Manway with Vented Dome Cover
  • Powder coat finish, in a wide choice of colors
  • Internal Valve with Emergency Release & Cable Operator
  • Top Quality Components: GPI, Fill-Rite, Dixon, Hannay, Reelcraft, Betts, etc…
  • Includes a special vent, required on gasoline tanks as a safety feature

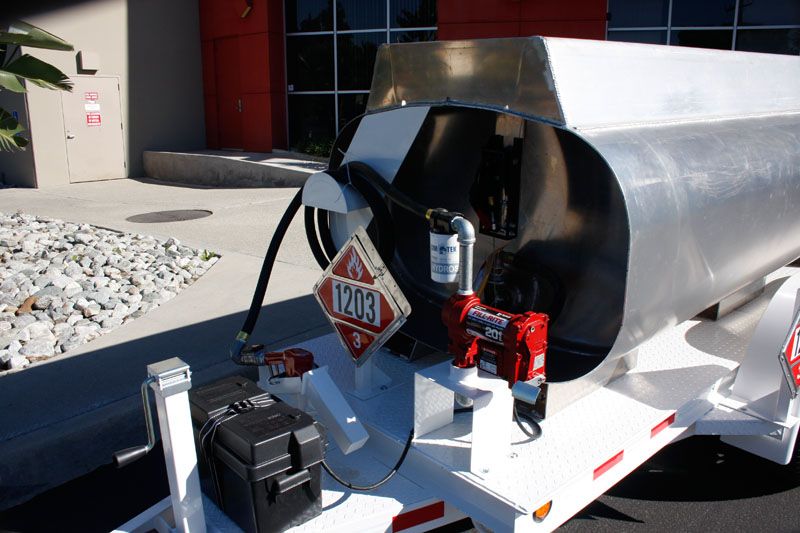

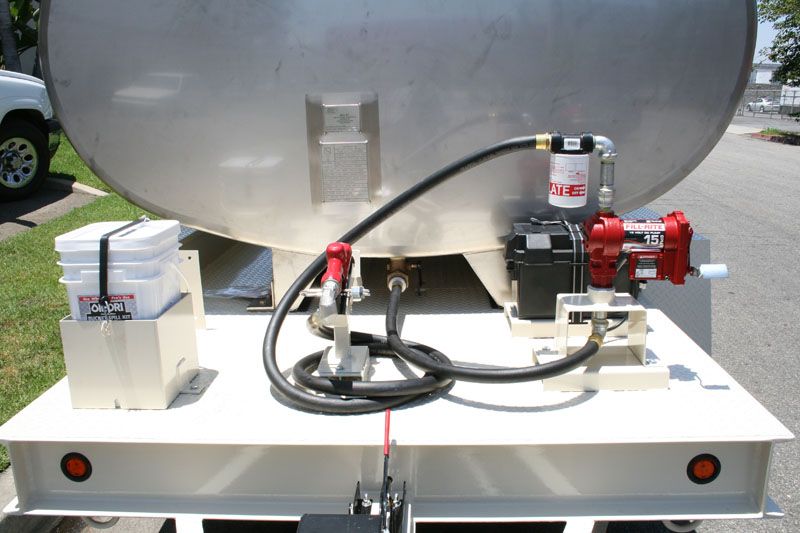

Standard Dispensing Equipment
  • GPI & Fill-Rite 12V High-Output 10 Gallon Per Minute pumps
  • 12V Battery with Box
  • Battery Charger
  • 12’ UL Hose with Manual Shutoff Nozzle
  • Fuel Filtration System
  • Vented Fill Cap

Trailer Features
  • Super-Duty Steel Chassis
  • Steel Fenders & Diamond-Plate Decking
  • Tandem Axle
  • Electric Brakes with Safety Breakaway System
  • LED DOT Lighting, with Steel Guards
  • Adjustable Ball Hitch
  • Heavy-Duty Tongue Jack
  • Powder Coat Finish
  • “Fuel Cart” style Available with Pintle Hitch


DOT406 Requirements

A specific tank is required per CFR49 Parts 100 - 185 transportation, for the transport of gasoline in a bulk container. Due to the flash point of gasoline, this tank falls into the category of Class III Fuels that is REQUIRED to be transported in a Code DOT 406 vessel. If this tank will hold gasoline, the tank is required to meet DOT 406 Specifications, be labeled accordingly and be annually tested per CFR 49 requirements. Gasoline has a Flash Point of -40`F, which is lower than the 100`F for Class III Fuels to be included in the “non-code” section of this provision for Class III Fuels.
DOT406 Tanks meet the requirements of 49 CFR Ch. I (10-1-07 Edition) §172.102, B1 and 49 CFR Ch. I (10-1-07Edition) §173.242,Bulk Packaging for Certain Medium Hazard Liquids and Solids, including solids with dual hazards.

DOT406 specification tanks meet Federal regulations for the transport of Gasoline and most other fuels over public roads.

Important DOT 406 Requirements (not inclusive of all DOT 406 specifications):

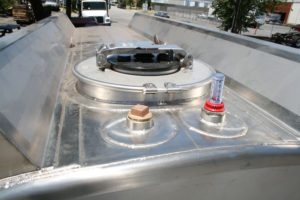

The standard manway incorporates a 10” fill/inspection port and also functions as an emergency valve. The manway also incorporates a “normal” valve that opens to accommodate for changes in vacuum and pressure per the DOT code. Depending on tank dimensions, a smaller manway with the vents and ports is installed and a larger bolted manway is added for full inspection access.


All connections on top of the tank are shielded by rollover protection rails. All connections to the base of tank are done with emergency valves that feature an externally operated, internally actuated poppet, external shear section, and fusible link (closes in case of fire), all per the DOT code.


Tanks are constructed of A36 mild (carbon) steel, 304 stainless steel, or aluminum alloy. The shell and head thicknesses are dictated by the DOT/ASME code and are based on the material used and the dimensions of the tank.


Quality Fuel Trailer and Tank, Inc. does not monitor federal, state or local laws regarding use of these products. Customer assumes full responsibility for legal compliance. Please consult with authorities concerning proper use prior to purchasing.


Because of the nature of our products, it is typically not feasible to return them to the manufacturer for repair. For a period of one year, we will ship needed parts, and pay for necessary warranty work done locally and arranged by the customer. Warranty covers manufacturing and assembly defects only. Warranty does not cover damage caused by user or units modified in any way by user. Abuse, misuse, etc. is not covered. All of our products are built to last, and should give many years of service when properly operated and maintained.

  • All sales final. All products sold are made to order and cannot be returned.
  • Please confirm that what you order is what you need. Receipt of a purchase order or deposit constitutes acceptance of specifications by customer.
  • Changes made after receipt of order may be subject to surcharge.
  • Terms: 50% Deposit at order, balance due upon delivery. Contact us if other terms are requested. (Governmental purchases excepted)
  • All equipment sold remains sole property of Quality Fuel Trailer and Tank Inc. until payment in full is received.

Optional Packages

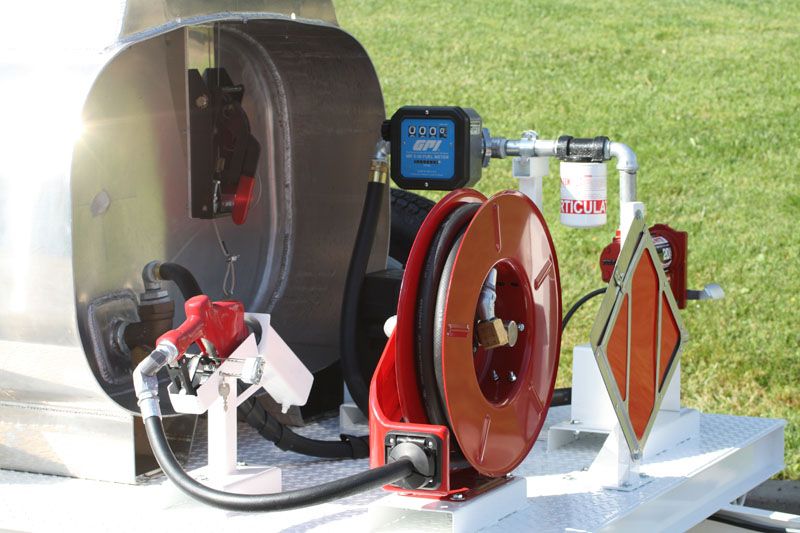

Plus Package

Includes Standard Dispensing Equipment Plus

  • Fuel Meter
  • Fuel Level Gauge
  • Deep Cycle Battery Kit; w/Box and Automatic Charger
  • Automatic Shut-off Nozzle & Swivel
  • 25’ UL Hose on Spring Rewind Reel
  • GPI or Fill-Rite 15 Gallon Per Minute Pump

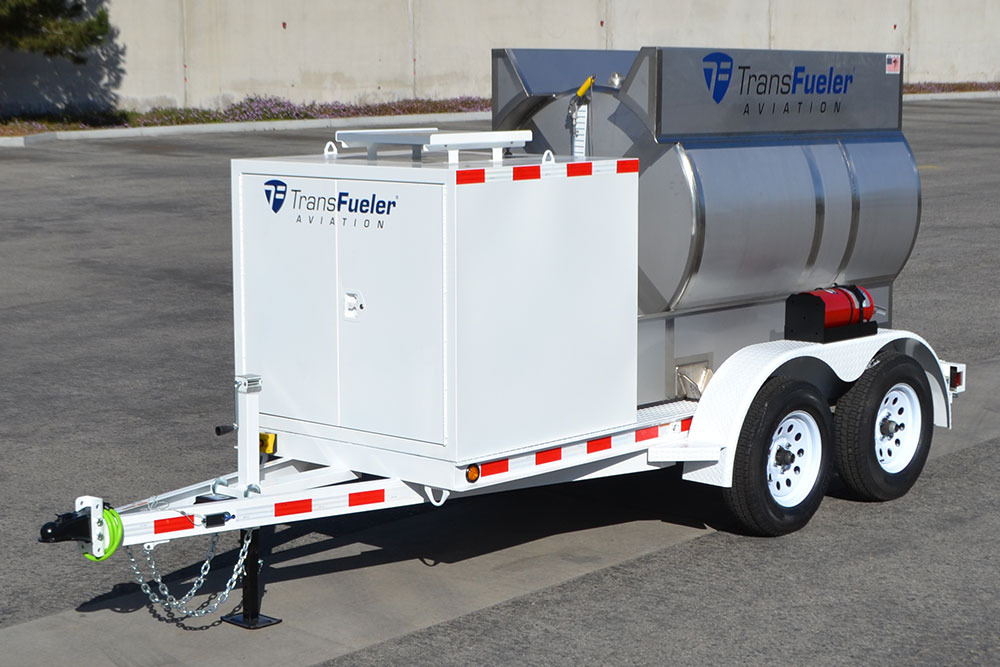

Aviation Package for Avgas, Jet-A, JP-8, JP-5
  • GPI M3025-AV Aviation Pump (25GPM)
  • Facet VF-21 Filter Housing and Element
  • Mechanical Totalizing Meter
  • 12 Volt Deep-Cycle Battery, Battery Box & Automatic Battery Charger
  • 50’ x 1” Aviation Grade Hose
  • Spring Rewind Hose Reel w/Stainless Steel Internals
  • Stainless Steel Plumbing and Fittings
  • Aviation Overwing Nozzle w/Dust Cap & 6.5’ Grounding Wire
  • 50’ Static Cable on Spring Rewind Reel
  • (2) ABC 20# Fire Extinguisher w/Brackets
  • ¾” Fuel Sump Drain Valve
Additional Options

TransFueler has a wide variety of options. We can equip your TransFueler to precisely match your needs:

  • Hose Length Options Up To 150' of UL Hose on Reel
  • Stainless Steel or Aluminum Tanks
  • Epoxy Interior Tank Lining, To Reduce Corrosion
  • Pump Options: 12V, 115VAC, Ultra-High Output, Diesel Powered or Gas Powered Pumps
  • DEF System. Includes Tank, Pump, Hose & Nozzle. Choice of Capacity.
  • Certifiable Meter for resale of fuel; TCS or Liquid Controls
  • Fuel Management System To Control and Track Fuel Dispensing and Use
  • Static Grounding / Bonding Reel
  • Refuel / Defuel System. Great option that allows the pump to pull fuel out of a tank as well as dispense it. A TransFueler EXCLUSIVE
  • Fire Extinguisher(s), Mounted
  • Bottom Fill Kit w/2" Dry Disconnect, 2" Ball Valve & Sump Drain

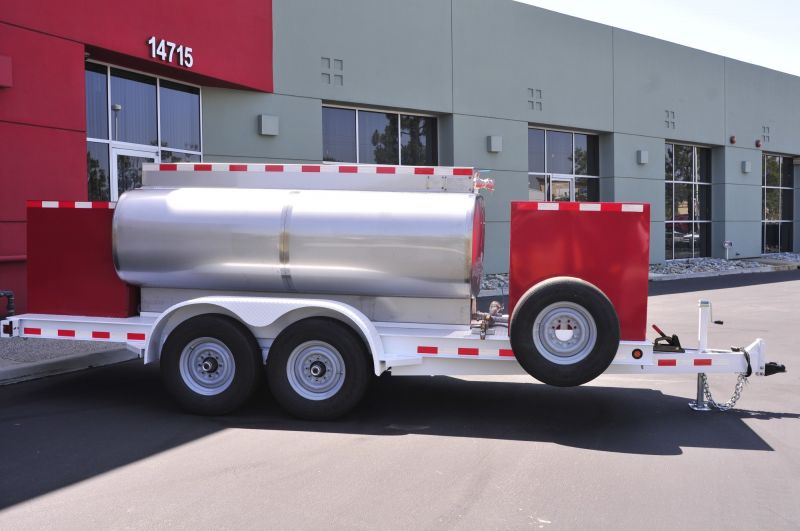

  • Spare Tire Assembly w/Mount
  • Tool Box: 48" or 58"

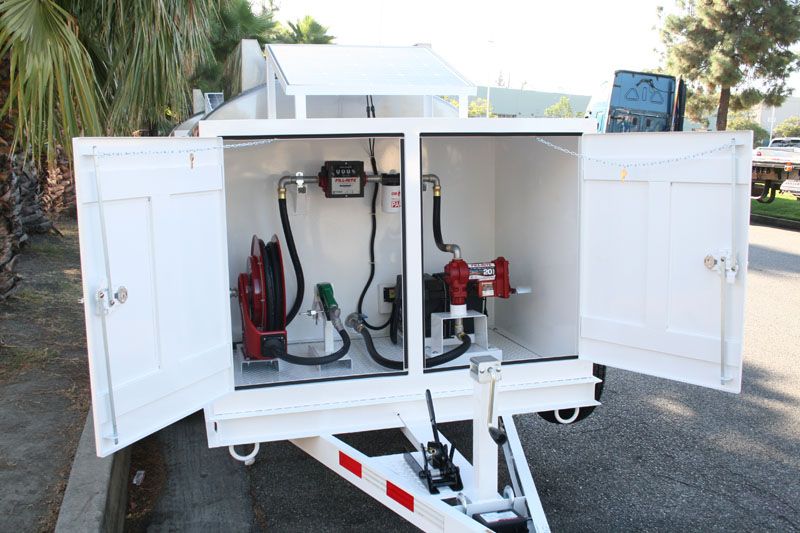

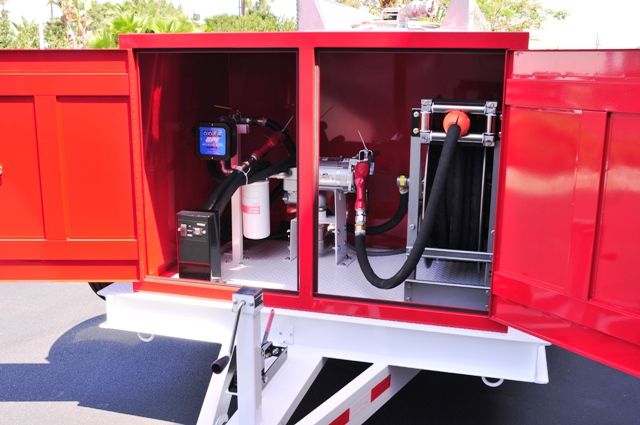

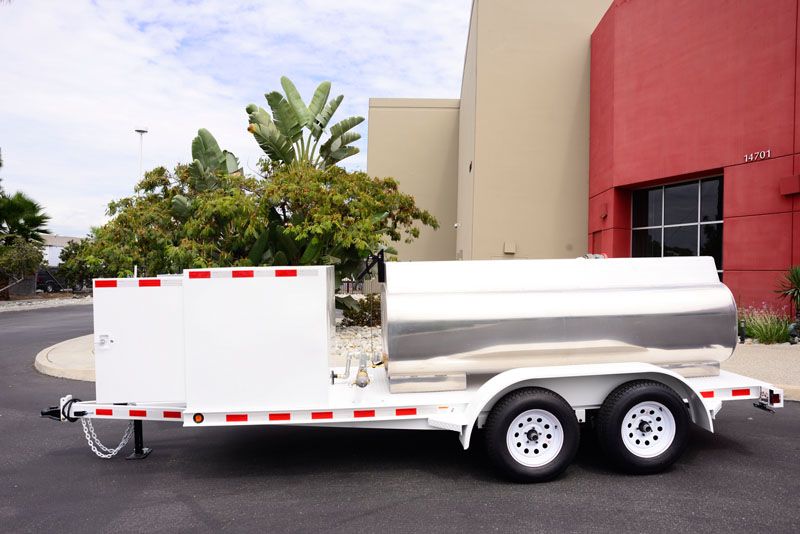

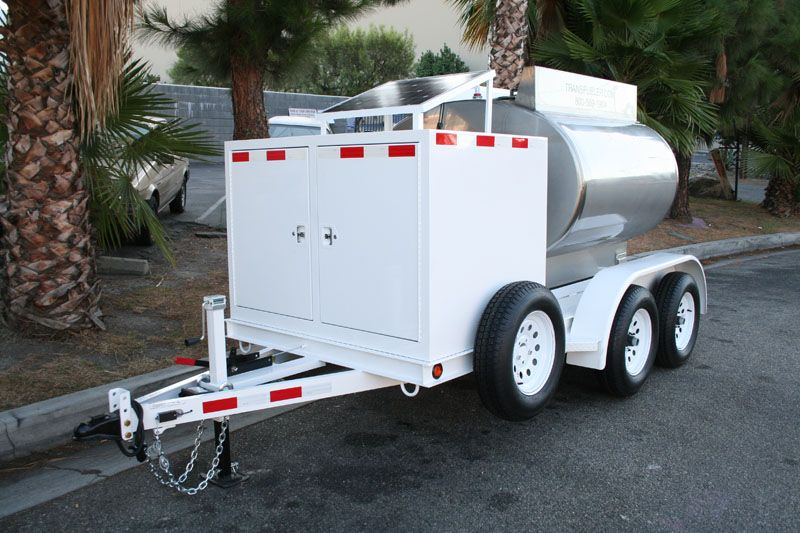

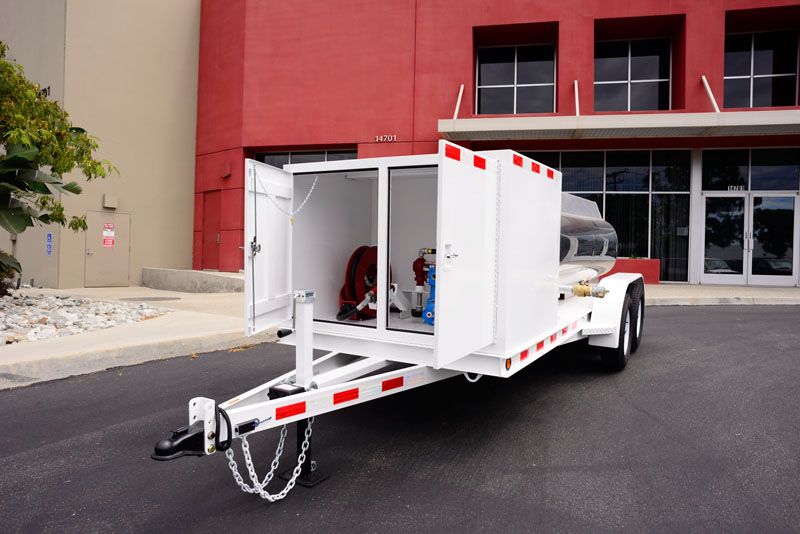

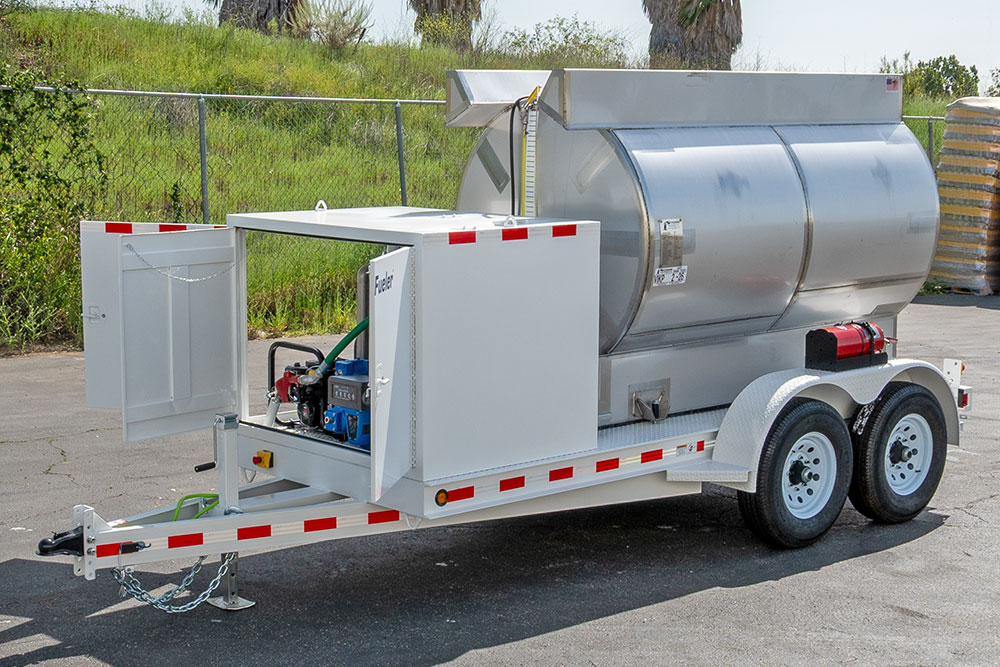

  • Locking Steel Enclosure Cabinet; Secures Dispensing Equipment. Protects from Weather
  • Work Lights; LED or Halogen
  • Solar Panel System: 60 Watt, Includes Charger/Controller
  • Air Compressor
  • Welder or Welder/Generator
  • Generator, Diesel or Gas Powered
  • Lube System; Oil, Grease, Hydraulic & DEF systems. Includes Tank, Pump, Hose & Nozzle As Appropriate

Looking for something not included above? Contact us with your needs: (800) 509-1904
