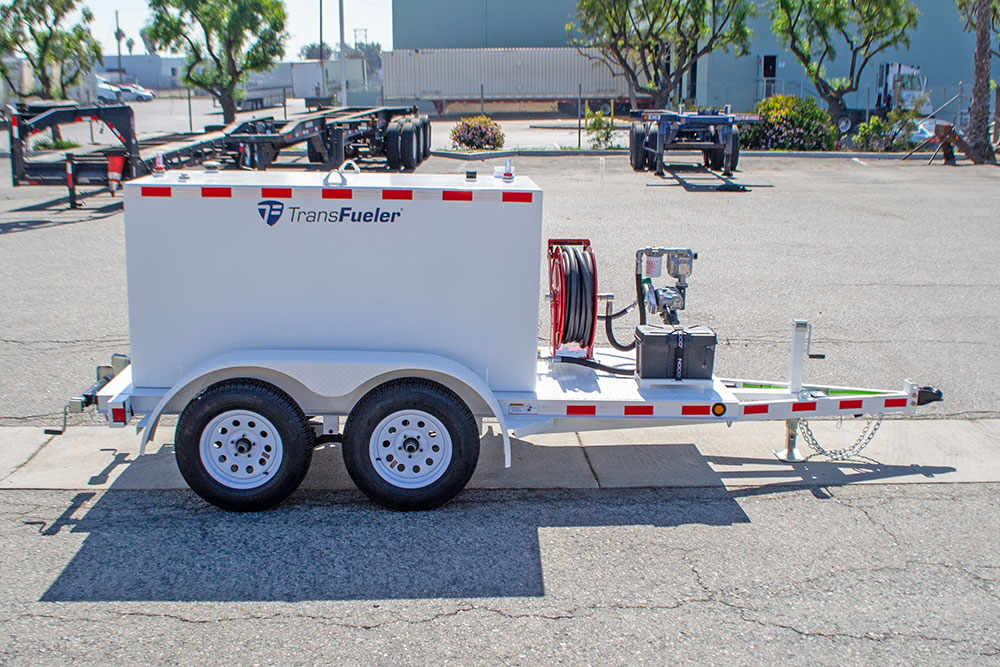

TFC-500DW-D | 500-gallon Diesel Fuel Trailer

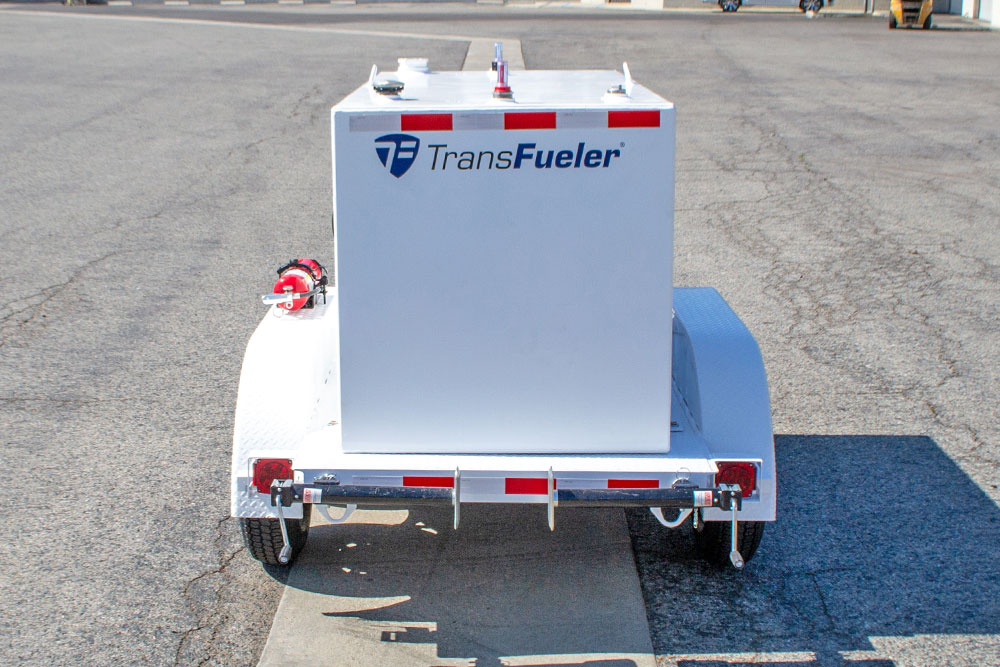

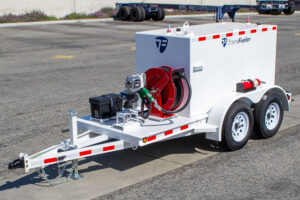

This package includes a 500-gallon double-wall tank with a carbon steel primary tank and internal baffles. The outer containment is made of mild steel with a powder-coated finish. It’s mounted on a 7K GVW double-axle steel trailer, DOT-approved for diesel fuel, and can be towed on public roads when full.

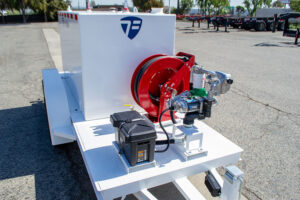

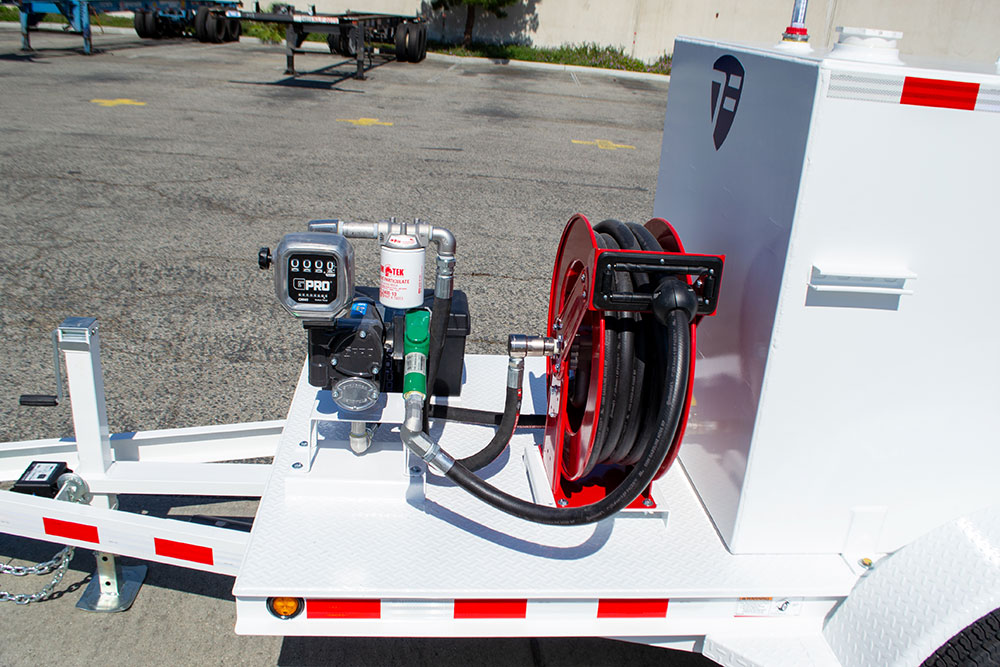

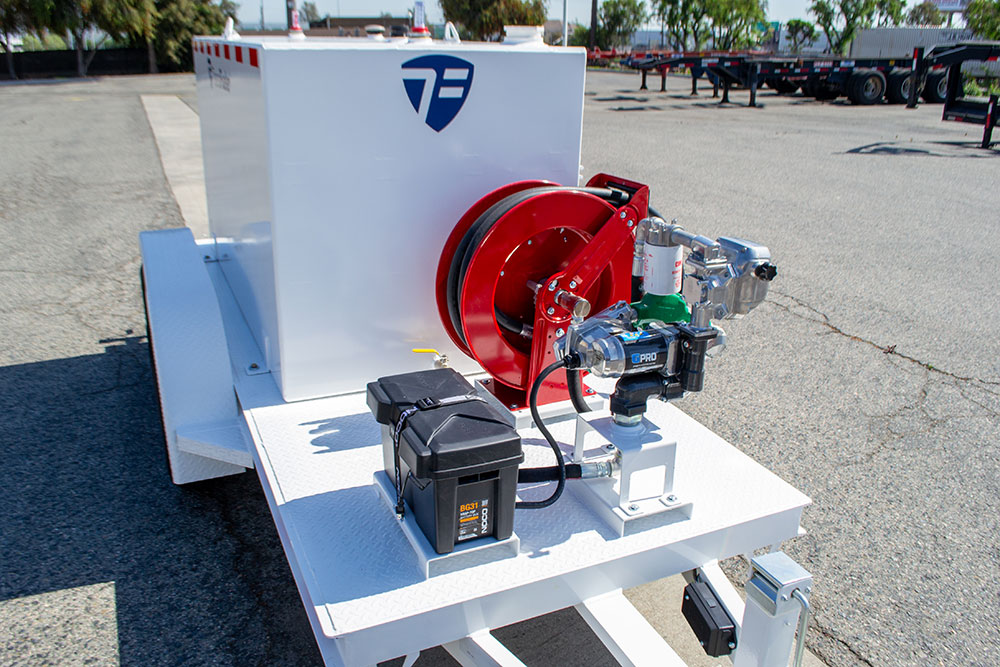

Standard dispensing equipment includes a pump, filter, meter, hose, reel, and nozzle. Our dispensing packages use components of the most trusted brands in the fueling industry, such as; Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. We can customize the equipment packages to run off 12-volt DC, 115 volt AC, or a gasoline-powered pump.
| Tank Size | 500-gallons |
| Tank Thickness | 10 Gauge |
| DOT Status | Approved for Diesel |
| Axles | 2 @ 3,500 lbs each |
| Hubs | 5 x 4.5" |
| Tires | 15" Radial |
| Fuel Baffles | 2 |
| Trailer Frame | 4" C Channel |
| GVWR | 7,000 lbs |
| LxWxH | 168" x 71.5" x 68" |

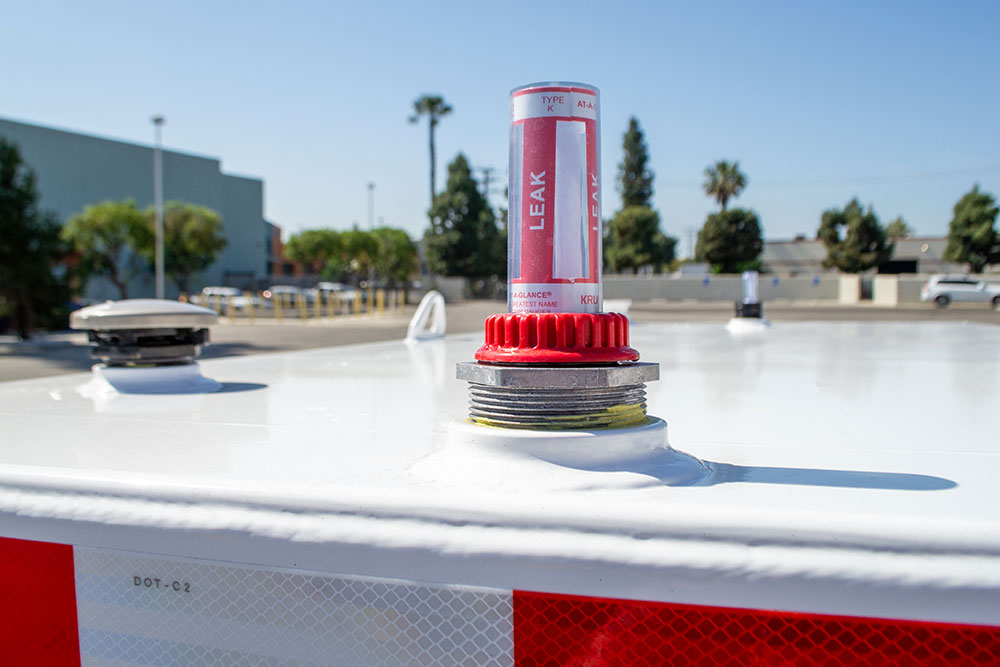

- Tank level gauge, leak gauge, lockable fill cap, 20” Betts hatch with vacuum/pressure vent
- Stainless Steel baffles to prevent fuel sloshing
- Powder coat paint with base coat primer
- Integrated fuel sump with spring close valve
- Hoses, piping, and fittings are aviation grade
- Ball valve installed to isolate the tank
- Custom hose lengths available 1” to 2” diameters
- Powered retractable hose reels in 12-volt and 115-volt
- Pump options: 12-volt, 115-volt, gas powered and diesel-powered
- DEF System. Includes Tank, Pump, Hose & Nozzle. Choice of capacity
- TCS Certifiable and calibratable re-sale meters
- Piusi, TCS, and QT Pod fuel management and sales systems
- Static Grounding/Bonding Reel
- Refuel/defuel system. Great option that allows the pump to pull fuel out of a tank and dispense it. A Transfueler exclusive.
- Fire Extinguisher(s), Mounted
- Bottom fill with overfill prevention valve, stainless drop tube. Ball valve and male camlock fitting with cap
- Spare Tire with mount - 15” or 16”
- Toolbox: 48” or 60”
- Locking steel enclosed cabinet; secures dispensing equipment
- Work lights LED - 12 volt or 115 volt
- Solar panel system 100 watt - Include mounting brackets, controller, panel, and wiring.
- Air compressor, electric or gas-powered
- Generator, diesel or gas-powered
- Lube System; Oil, Grease, Hydraulic & Waste Oil. Includes tank, Pump, Hose & Nozzle as appropriate
- Fork Lift Pockets
- Spill Containment Kit
- Ladder
- Battery Upgrade
- Digital Flowmeter
- Water Detection System
- Replacement Filters
- Aluminum Mag Wheels
