TFC-MINI-G/D | 95-gallon Mini Fuel Trailer

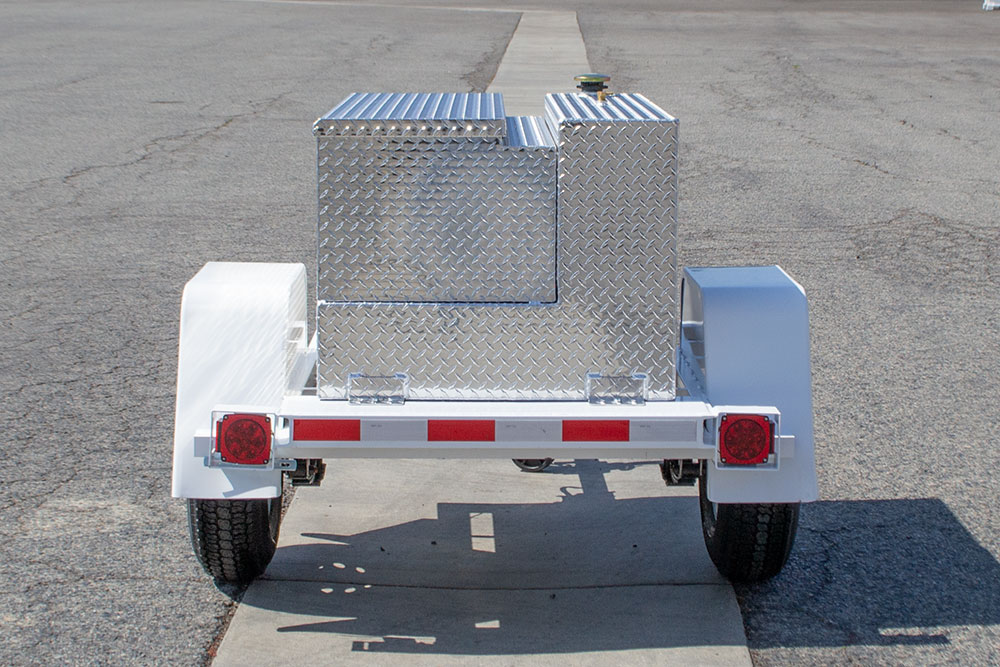

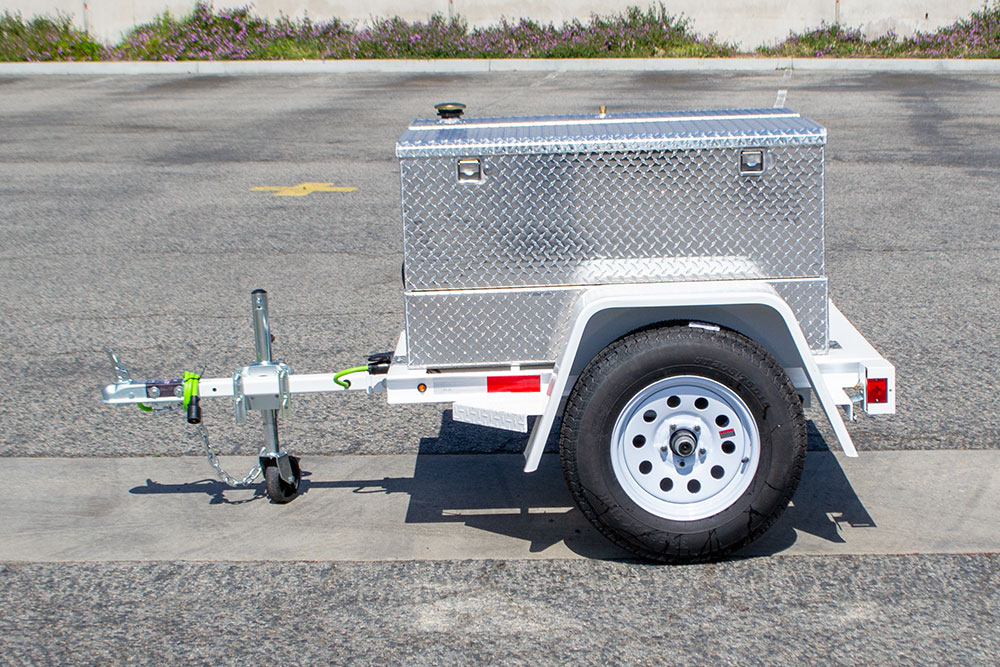

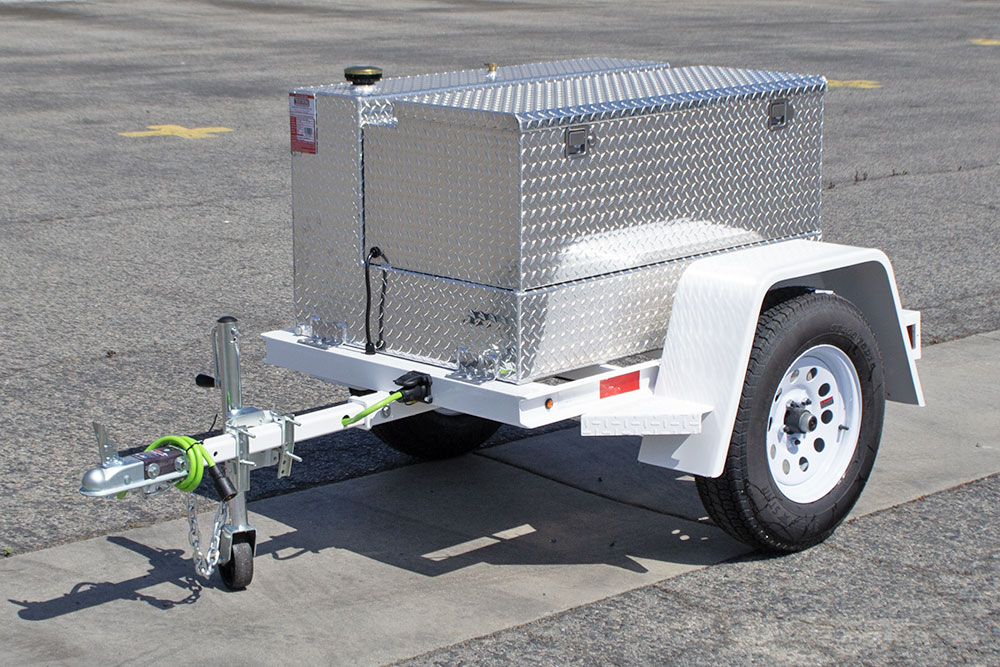

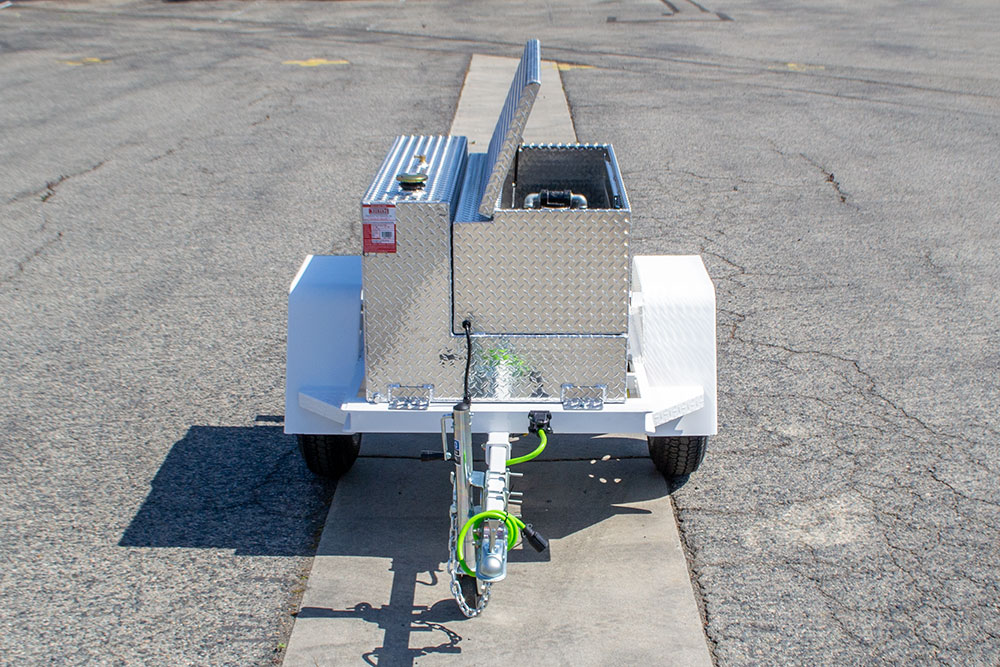

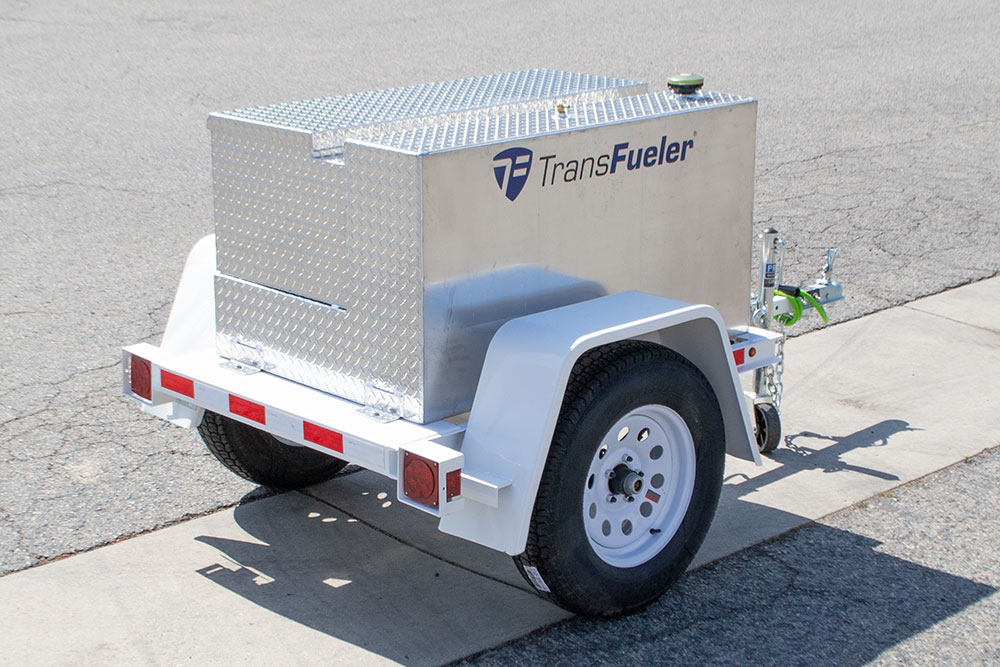

This package includes a diamond plate aluminum tank with a storage box mounted on a 3.5K GVWR single-axle steel trailer. The trailer is DOT-approved for use with Gasoline, Diesel, and most other fuels. It can be towed on public highways when full.

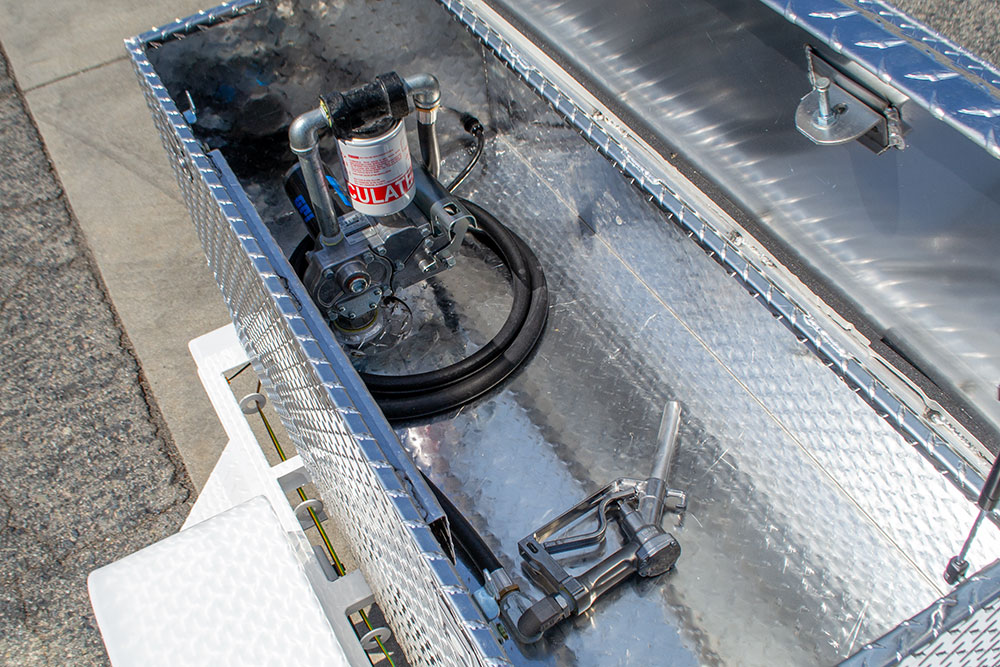

Our Standard equipment packages feature the most trusted brands in the fueling industry, such as Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. Dispensing equipment packages run on 12-volt DC, 115-volt AC, or diesel/gas-powered pump.
| Tank Size | 95-gallons |
| Tank Thickness | 10 Gauge |
| DOT Status | Approved for Gas & Diesel |
| Axles | 1 @ 3,500 lbs each |
| Hubs | 5 x 4.5" |
| Tires | 15" Radial |
| Fuel Baffles | 1 |
| Trailer Frame | 3" C Channel |
| GVWR | 3,500 lbs |
| LxWxH | 92.5" x 55" x 46.6" |
| Safe fuel fill level | 85.5-gallons |

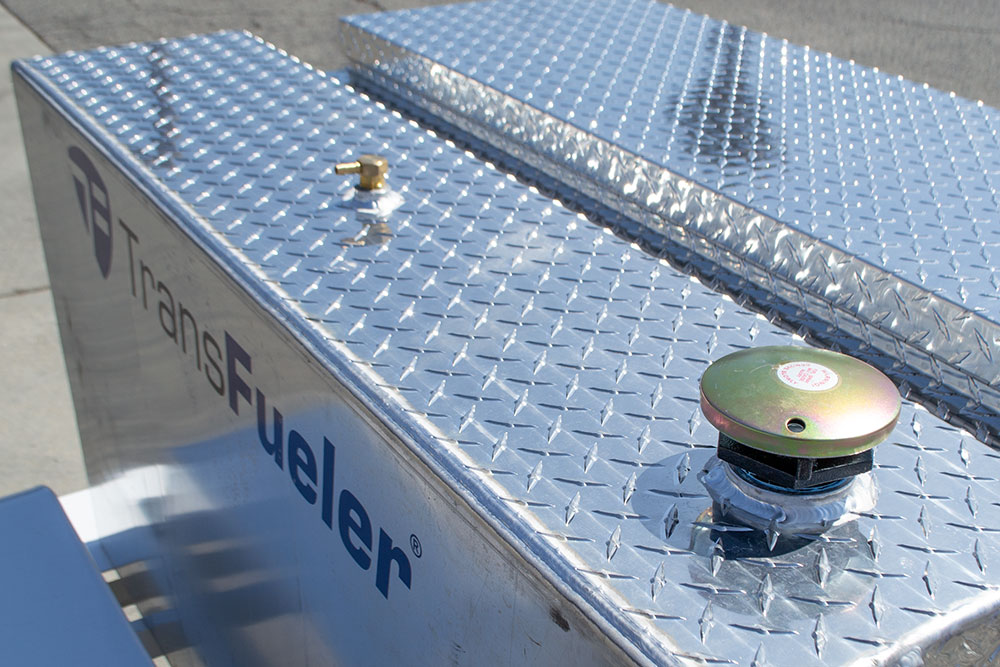

- Tank Level gauge, lockable fill cap, roll-over vent
- Aluminum construction, baffles to prevent sloshing
- Powder coat paint with base coat primer
- Certified hoses, piping, and fittings

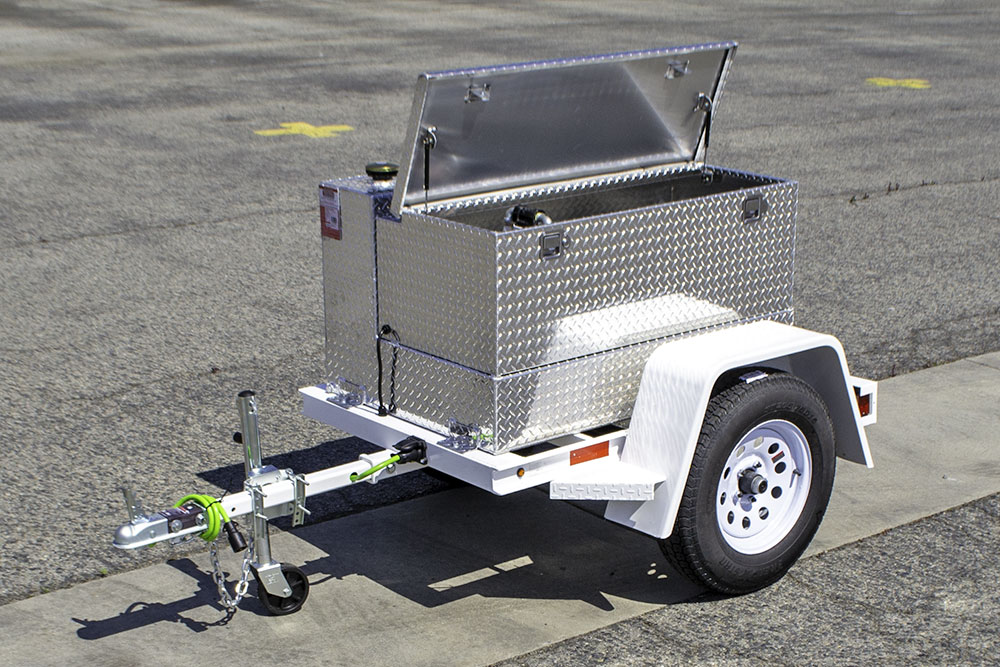

- Lockable cabinet enclosure with additional storage space
Watch the walkaround video
